FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V

Ping You Industrial Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V from wholesalers

    Buy cheap FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V from wholesalers
    • Buy cheap FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V from wholesalers
    • Buy cheap FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V from wholesalers
    • Buy cheap FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V from wholesalers

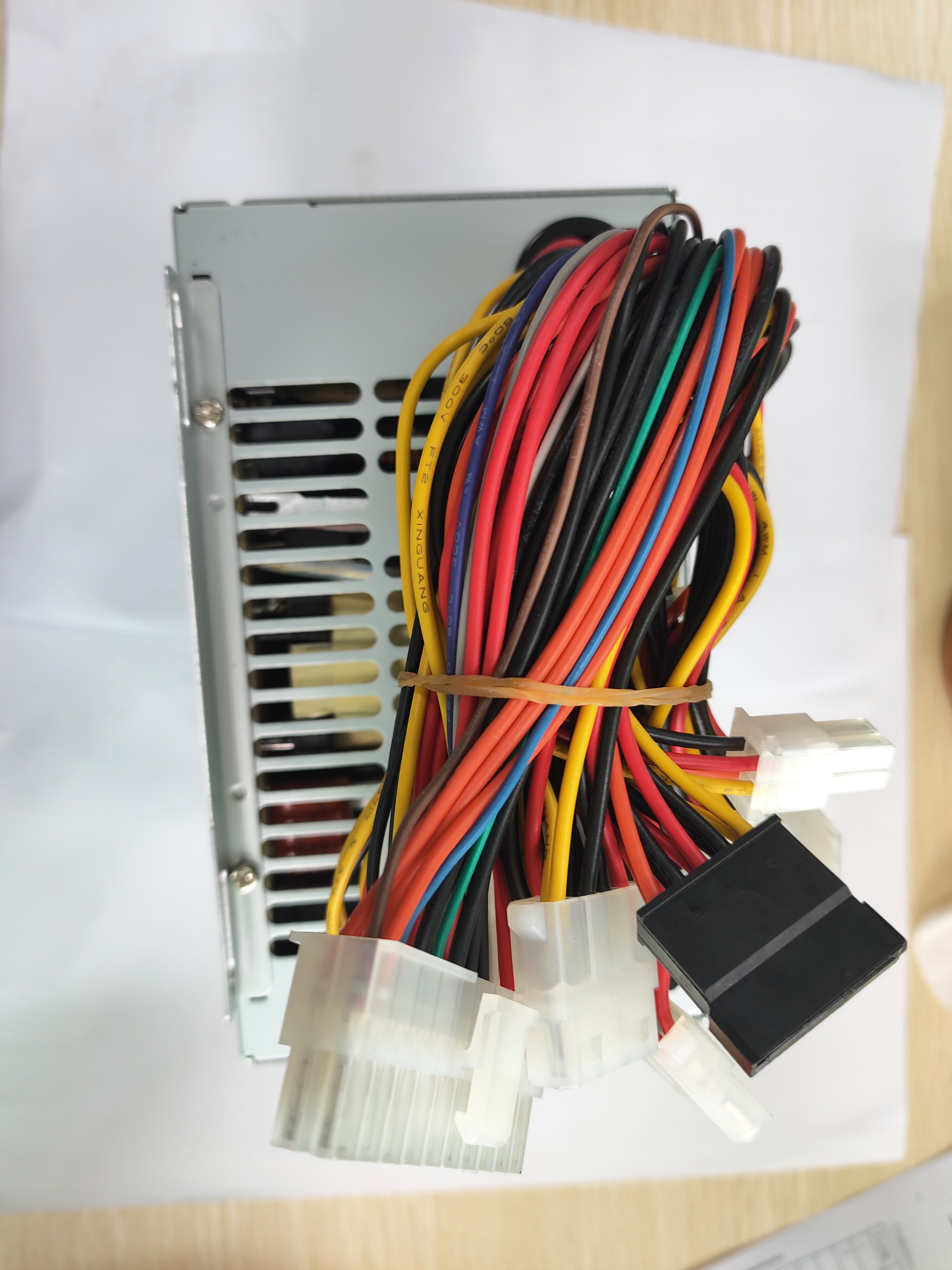

    FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V

    Ask Lasest Price
    Brand Name : FSP
    Model Number : FSP300-60ATV(PF)
    Certification : ISO90001
    Price : Negotiable,EXW Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs monthly, delivery time 1-2 days
    Delivery Time : 1-2 work days
    • Product Details
    • Company Profile

    FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V

    FSP300-60ATV(PF) switching power supply smt machine parts smt pick and place equipment


    Brand NameFSP
    ModelFSP300-60ATV(PF)
    OriginCHINA
    Minimum order quantity1PCS
    Pricenegotiable

    FSP ATX3500-65PA FSP250-60PNA FSP260-60SLV FSP230-60SLV FSP350-60THN-P FSP550-60PLN FSP550-63PLN FSP350-701U etc.
    FSP250-60PFN FSP300-60PFN has long been discontinued, completely replaced by FSP400-60PFN.
    FSP250-0PFN(12V) FSP300-60PFN(12V) FSP400-60PFN FSP SPI
    The FSP400-60PFN power interface outlets are as follows:
    20P with -5V 1
    CPU4P 1
    IDE 6
    sata 2
    Floppy drive interface 1
    Special industrial control P6 1
    1 special transformation interface
    FSP300-60PFG FSP400-60PFG FSP250-60PFN FSP300-60PFN FSP400-60PFN HG2-6350P HG2-6400P These 7 models of power supplies are common to each other FSP Industrial Computer ATX power supply 80Plus (Bronze) Desktop power supply Workstation power switch power supply switching power supply Power Supply DC Power Supply AC Power Monitoring Power Firewall Power Switch Power Storage Cabinet Power Disk Array Cabinet Power Supply Power Adapter, etc. SPI FSP FSP Industrial Power Supply
    FSP250-60PFV(12V)|FSP300-60PFV(12V) FSP full line power supply
    Industrial Control *** Power Supply Rated 300W Direct Blowing Fan
    Main parameters of FSP300-60ATV(PF)
    Applicable type: industrial computer/desktop
    Model FSP300-60ATV(PF)
    Power standard ATX
    Rated power 300W
    Applicable CPU range Support INTEL and AMD full series CPU
    Certification specifications 3C certification TUV CE UL etc.
    ATV Product Description
    Dimensions: 140 x 150 x 86mm
    Application system: industrial computer
    Wattage: 300W
    PFC: Active
    safety function
    feature of product
    • High efficiency
    • Low ripple & noise
    • Resettable power shut down
    • Internal 8 cm fan (GLC), 12 cm fan (GLN)
    • *** burn-in test
    • MTBF: 100K hours at 25°C
    product specification
    Input Specifications
    • Voltage:
    100-240VAC
    • Frequency: 47Hz to 63Hz
    Protection Specifications
    • Over-voltage protection: +5V, +3.3V, +12V1, +12V2
    • Over-current protection +5V, +3.3V, +12V1, +12V2
    • Short circuit protection
    General Specifications
    • Efficiency: 75% min. at full load
    Environmental Specifications
    • Operating conditions:
    ambient temperature 0°C~50°C, 5~95% RH
    • Storage and
    Shipping conditions: ambient temperature -20°C~80°C, 5~95% RH
    output

    Model Watts
    Outputs
    +3.3V +5V +12V1 +12V2 +12V3 -5V -12V +5Vsb
    FSP300-60atv(pf) 300W 28A 30A 15A - 0.3A 0.8A 2.0A
    FSP350-60GLC 350W 22A 21A 10A 15A - - 0.5A 2.5A
    FSP400-60GLC 400W 30A 30A 14A 15A - - 0.5A 2.5A
    FSP460-60GLC 460W 30A 30A 16A 18A - - 0.5A 2.5A
    FSP500-60GLC 500W 30A 30A 18A 18A - - 0.5A 2.5A
    FSP500-60GLN 500W 30A 30A 18A 18A - - 0.5A 2.5A

    FSP ATX3500-65PA FSP250-60PNA FSP260-60SLV FSP230-60SLV FSP350-60THN-P FSP550-60PLN FSP550-63PLN FSP350-701U
